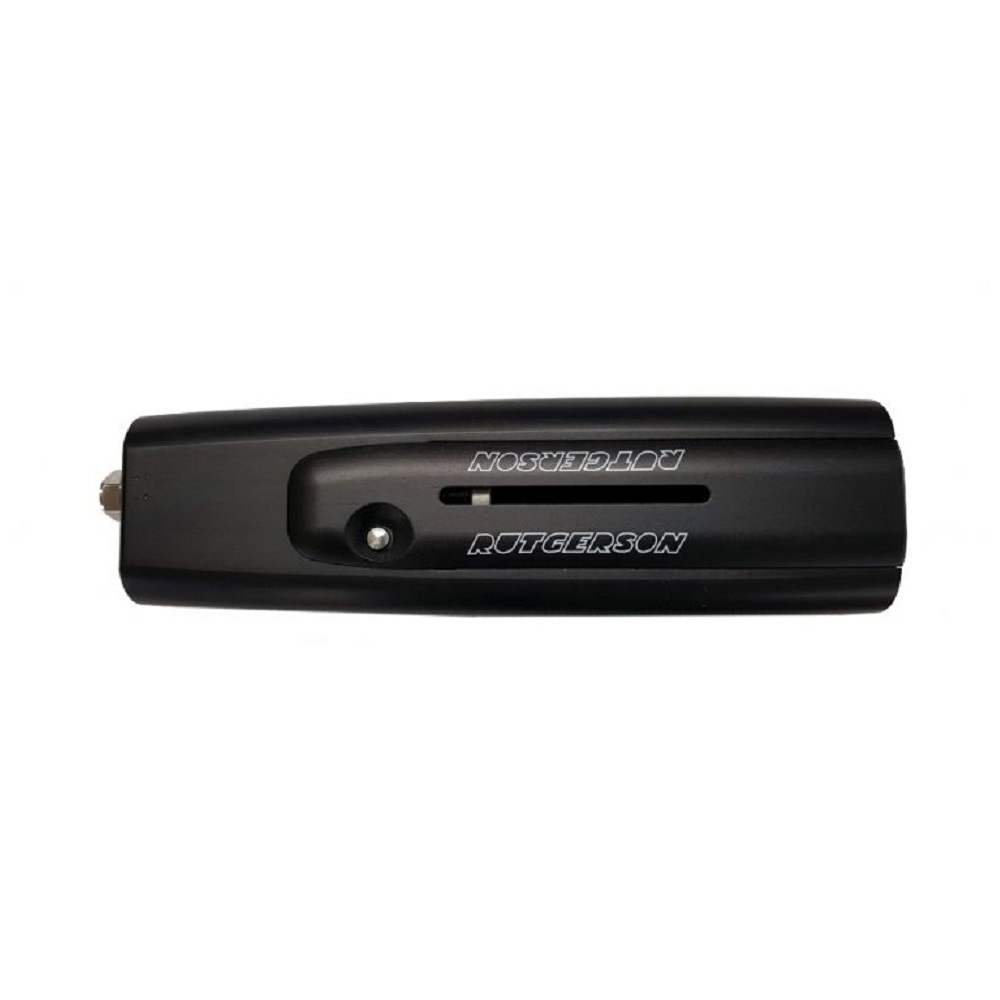

Rutgerson's batten receptacle range in aluminum is especially developed for big boats and high loads, with the largest model suitable for boats up to 90ft monohull and 80ft multihull. The design is clean, with no screws or sharp edges.
These receptacles can be used with both round and flat battens, and no tools are required to open the lid. You simply press the button and slide off the lid whenever you need to insert or remove a batten. The tensioning can easily be adjusted, and the lid has a window to track of the trim.
They are made of black anodized aluminum and stainless steel, and can be ordered with titanium screws for carbon fiber sails.
Part No. | Description | A | B | C | Max. Flat Batten Size | Max. Round Batten Size | Weight |
RU-1622 | M12 Thread | 227 mm | 67 mm | 39 mm | 36 mm x 16 mm | 26 mm | 857 g |
RU-1622T | M10 Thread With Titanium Bolts | 227 mm | 67 mm | 39 mm | 36 mm x 16 mm | 26 mm | 857 g |
RU-1624 | M12 Thread | 227 mm | 67 mm | 39 mm | 36 mm x 16 mm | 26 mm | 857 g |
RU-1624T | M12 Thread With Titanium Bolts | 227 mm | 67 mm | 39 mm | 36 mm x 16 mm | 26 mm | 857 g |
Delivery charges will be calculated at the checkout based on your address and the weight of goods.
Please place orders before 12:00 if you wish to select express delivery.
Product Information Downloads
If available we provide product additional information as downloadable files on this page. If you can't find what your looking for please contact our sales team.
No downloads available at this time.
